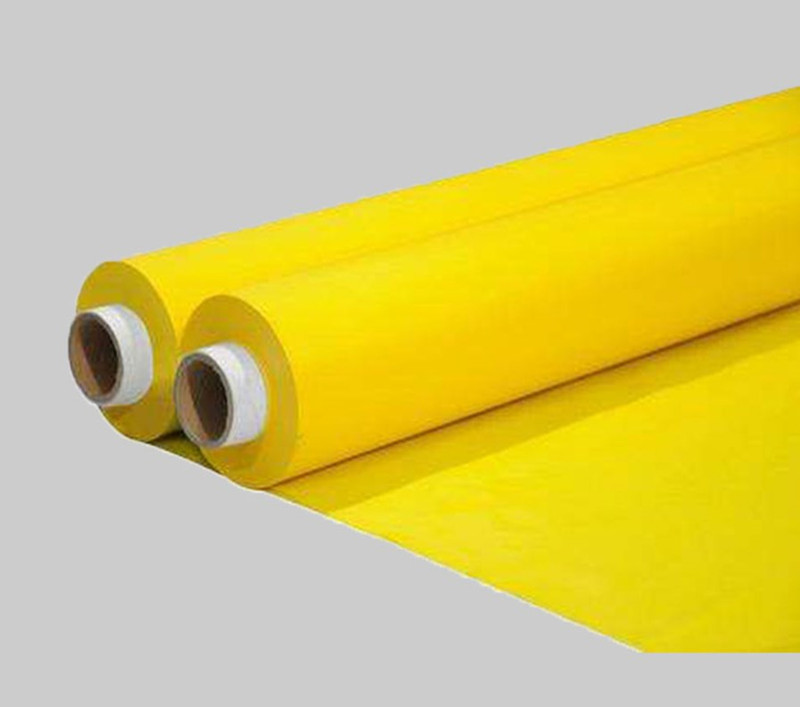

XS Polyester Screen Printing Mesh

Data Sheets
Features/Benefits
Options/Accessories

Specification:

Material	100% Polyester
Mesh count	18mesh(7T)-420mesh(165T)
Width	0.6m-3.65m
Length	30-70m per roll
Thread diameter	31-350um

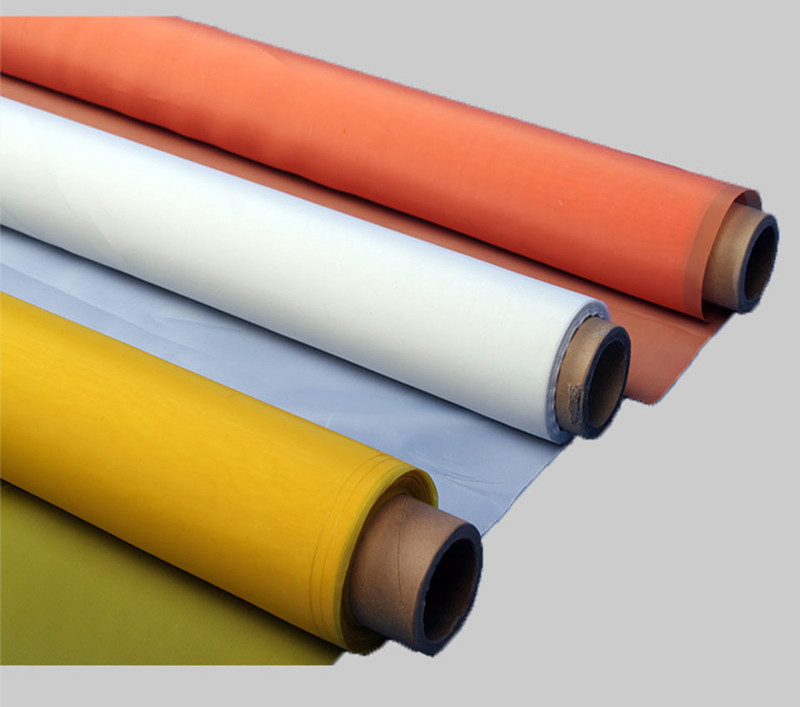

Color	white/yellow/orange
Packing	PVC bag inside for each roll, then carton,then waterproof bag outside

Application:

T-shirt printing, textile printing, paper printing,CD/DVD printing, glass printing, ceramic printing,package printing, PCB and electronics printing.

Feature:
1.Good diathermancy
2.High air permeability
3.Acid resistance and Alkali resistance
4.Long working life
5.Hard wear
6.Imported weaving machines from Switzerland and Italy.
7.Faster turnaround time from the screen room to the pressroom

Model	Specification (/cm)	Mesh count (mesh/inch)	Thread Diameter (um)	Mesh opening(um)	Open Area(%)	ThickneXS(um)
XS-PET7/1080	7	18	350	1080	57	640
XS-PET8/950	8	20	300	950	58	550
XS-PET10/700	10	25	250	700	49	620
XS-PET12/583	12	30	250	583	49	450
XS-PET16/425	16	40	200	425	46	400
XS-PET20/320	20	50	180	320	41	350
XS-PET24/297	24	60	120	297	51	240
XS-PET29/213	29	76	120	213	41	240
XS-PET32/213	32	80	100	213	46	200
XS-PET34/194	34	86	100	194	44	221
XS-PET36/178	36	90	100	178	41	216
XS-PET40/170	40	100	80	170	46	150
XS-PET43/153	43	110	80	153	43	130
XS-PET47/142	47	120	71	142	44	135
XS-PET53/125	53	135	64	125	44	120
XS-PET59/105	59	150	64	105	39	120
XS-PET62/100	62	155	64	100	37	115
XS-PET64/92	64	163	64	92	35	120
XS-PET68/83	68	173	64	83	32	130
XS-PET72/84	72	183	55	84	37	100
XS-PET77/75	77	195	55	75	33	105
XS-PET90/66	90	230	48	66	35	85
XS-PET100/61	100	250	40	61	37	70
XS-PET110/52	110	280	40	52	33	85
XS-PET120/42	120	300	40	42	26	68
XS-PET140/37	140	350	34	37	24	58
XS-PET150/34	150	380	31	34	26	46
XS-PET165/420	165	420	31	25	17	46
Remark:The following datas are theoretic, please reference the actual datas if there it differs.

Data Sheets

Specification:

Material	100% Polyester
Mesh count	18mesh(7T)-420mesh(165T)
Width	0.6m-3.65m
Length	30-70m per roll
Thread diameter	31-350um
Color	white/yellow/orange
Packing	PVC bag inside for each roll, then carton,then waterproof bag outside

Features/Benefits

Application:

T-shirt printing, textile printing, paper printing,CD/DVD printing, glass printing, ceramic printing,package printing, PCB and electronics printing.

Model	Specification (/cm)	Mesh count (mesh/inch)	Thread Diameter (um)	Mesh opening(um)	Open Area(%)	ThickneXS(um)
XS-PET7/1080	7	18	350	1080	57	640
XS-PET8/950	8	20	300	950	58	550
XS-PET10/700	10	25	250	700	49	620
XS-PET12/583	12	30	250	583	49	450
XS-PET16/425	16	40	200	425	46	400
XS-PET20/320	20	50	180	320	41	350
XS-PET24/297	24	60	120	297	51	240
XS-PET29/213	29	76	120	213	41	240
XS-PET32/213	32	80	100	213	46	200
XS-PET34/194	34	86	100	194	44	221
XS-PET36/178	36	90	100	178	41	216
XS-PET40/170	40	100	80	170	46	150
XS-PET43/153	43	110	80	153	43	130
XS-PET47/142	47	120	71	142	44	135
XS-PET53/125	53	135	64	125	44	120
XS-PET59/105	59	150	64	105	39	120
XS-PET62/100	62	155	64	100	37	115
XS-PET64/92	64	163	64	92	35	120
XS-PET68/83	68	173	64	83	32	130
XS-PET72/84	72	183	55	84	37	100
XS-PET77/75	77	195	55	75	33	105
XS-PET90/66	90	230	48	66	35	85
XS-PET100/61	100	250	40	61	37	70
XS-PET110/52	110	280	40	52	33	85
XS-PET120/42	120	300	40	42	26	68
XS-PET140/37	140	350	34	37	24	58
XS-PET150/34	150	380	31	34	26	46
XS-PET165/420	165	420	31	25	17	46
Remark:The following datas are theoretic, please reference the actual datas if there it differs.
